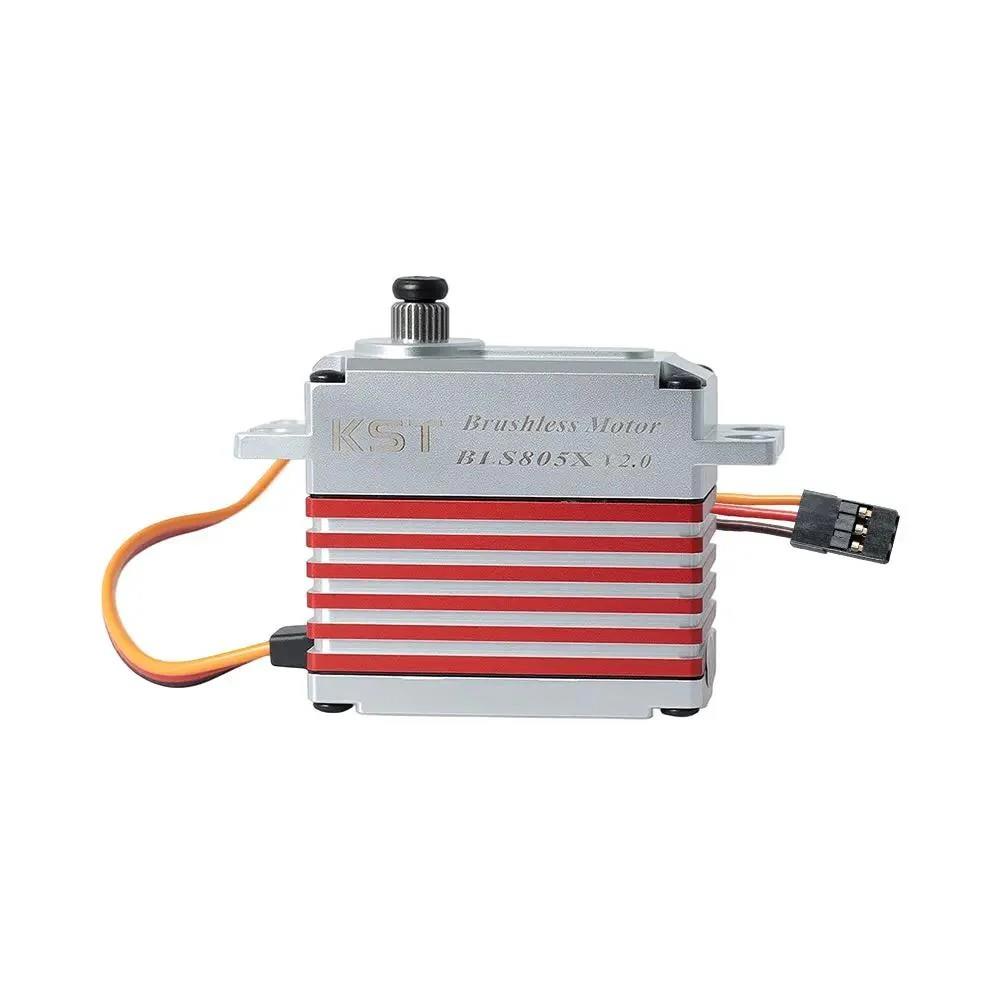

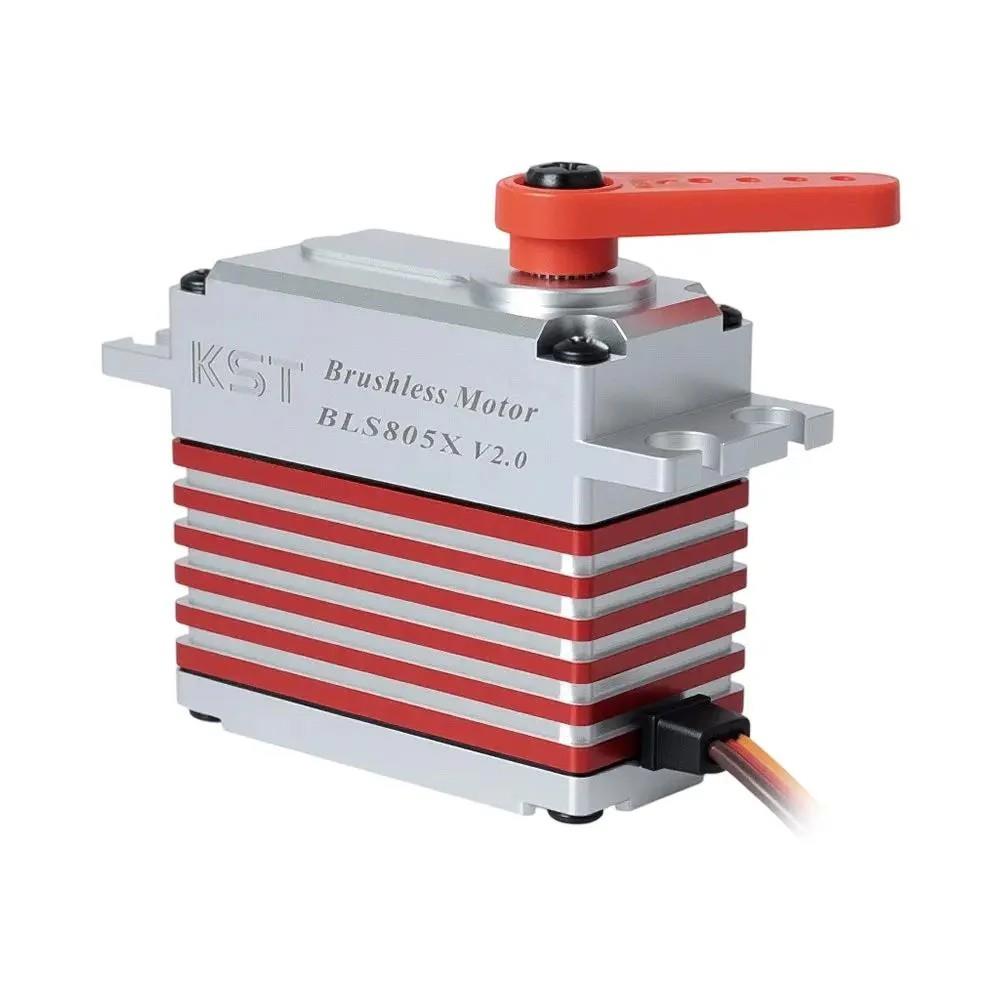

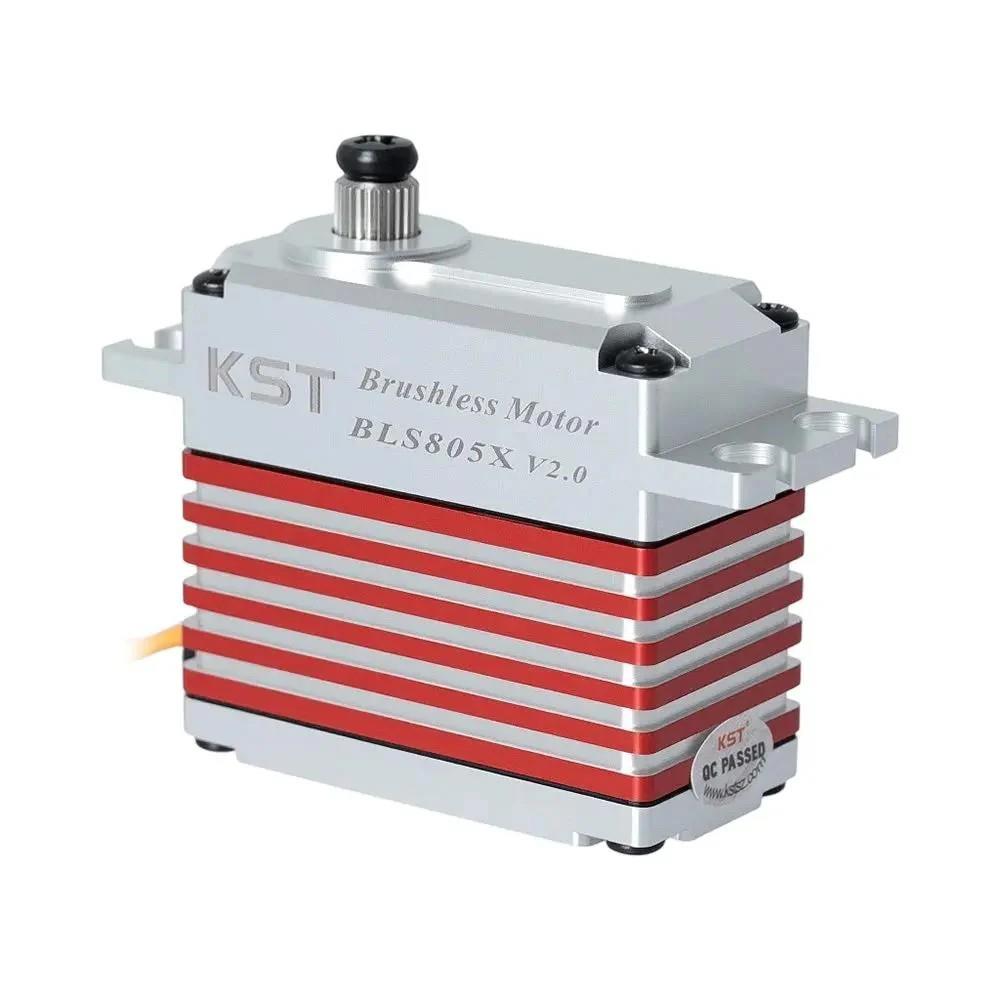

BLS805X HV Brushless Tail Servo 7.5kg.cm 0.039sec/60degree for Heli 550-700
Productno.: KST-BLS805

Price before  EURPrice78,84  EUR
  • The Shop with Knowhow
  • 14-day return policy
  • Fast delivery
Features
Extreme Torque and Excellent Speed
CNC Aluminium Case
Brushless DC Motor
Dual Ball Bearings
Ideal for Heli 550-700

Specification
Item: BLS805X HV Brushless Tail Servo
Operating Voltage: DC6.0V-8.4V

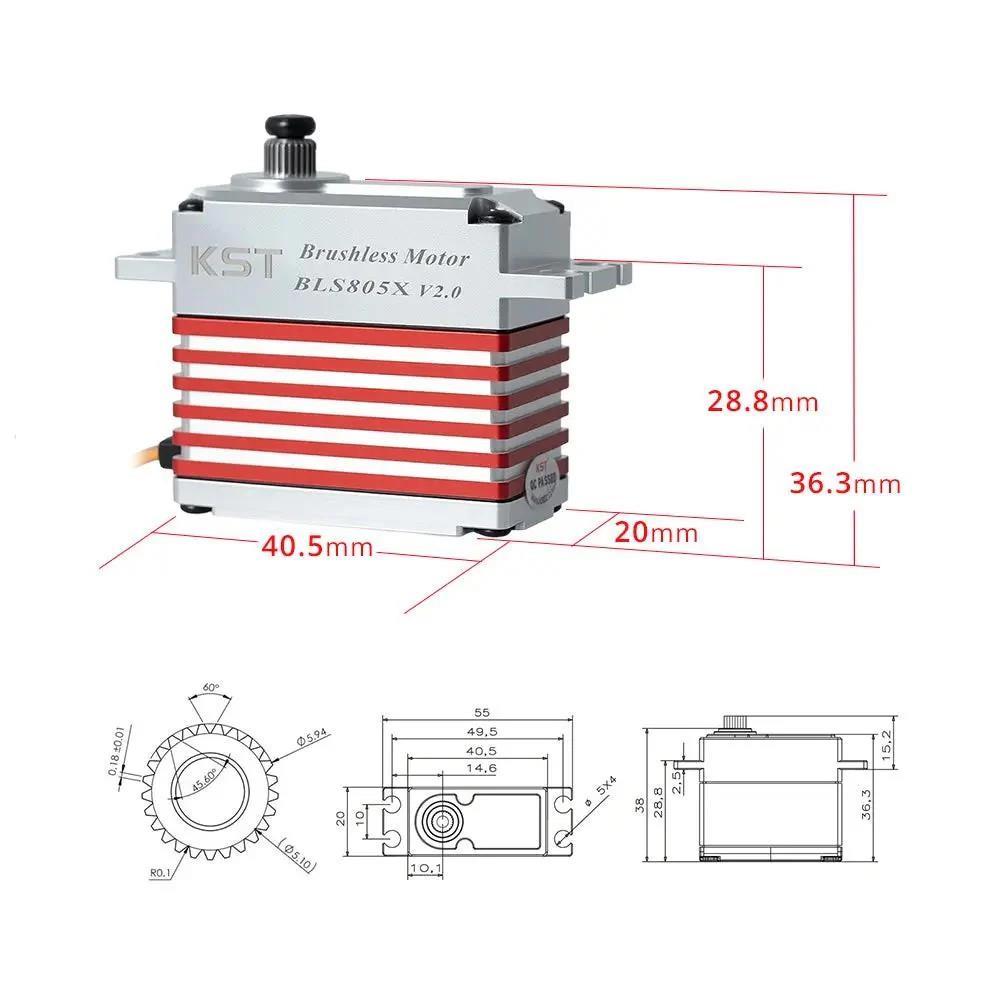

Dimension : 40.5mm*20mm*38mm±0.2mm
Torque: 5.5Kgf.cm@6.0V, 6.5Kgf.cm@7 .4V, 7. 5Kgf.cm@8.4V
Speed: 0.048sec/60° @6.0V, 0.042sec/60°@7.4V, 0.039sec/60°@8.4V
Temperature Range: -10℃……+65℃
Weight: 70g±10%
Working Frequency: 760μs/560Hz
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Position Sensor: Potentiometer
Ball Bearing: 2BB
