Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
Programmable
CNC Aluminium Case
Brushless DC Motor

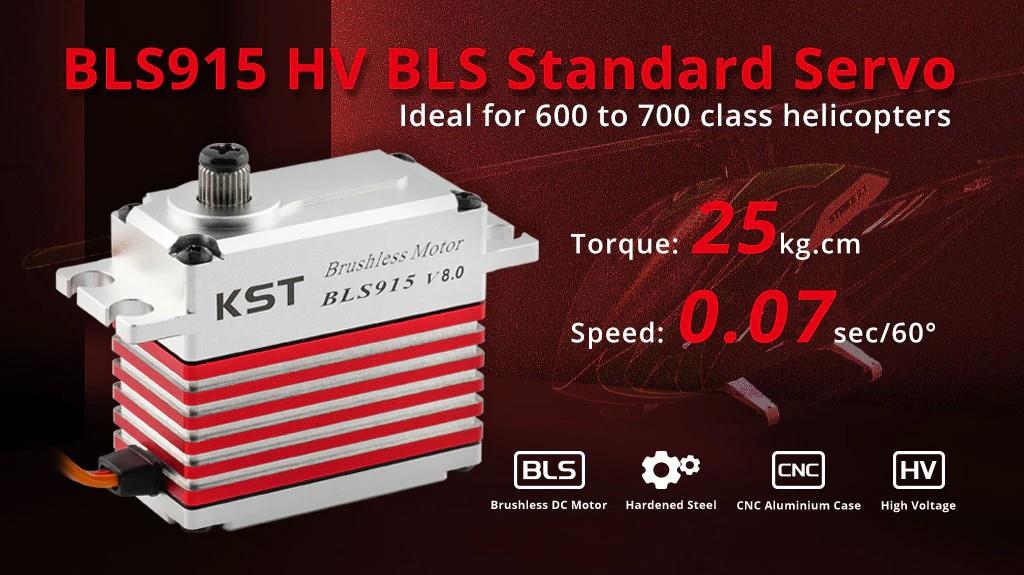

Ideal for 600 to 700 Class Helicopters

Specification

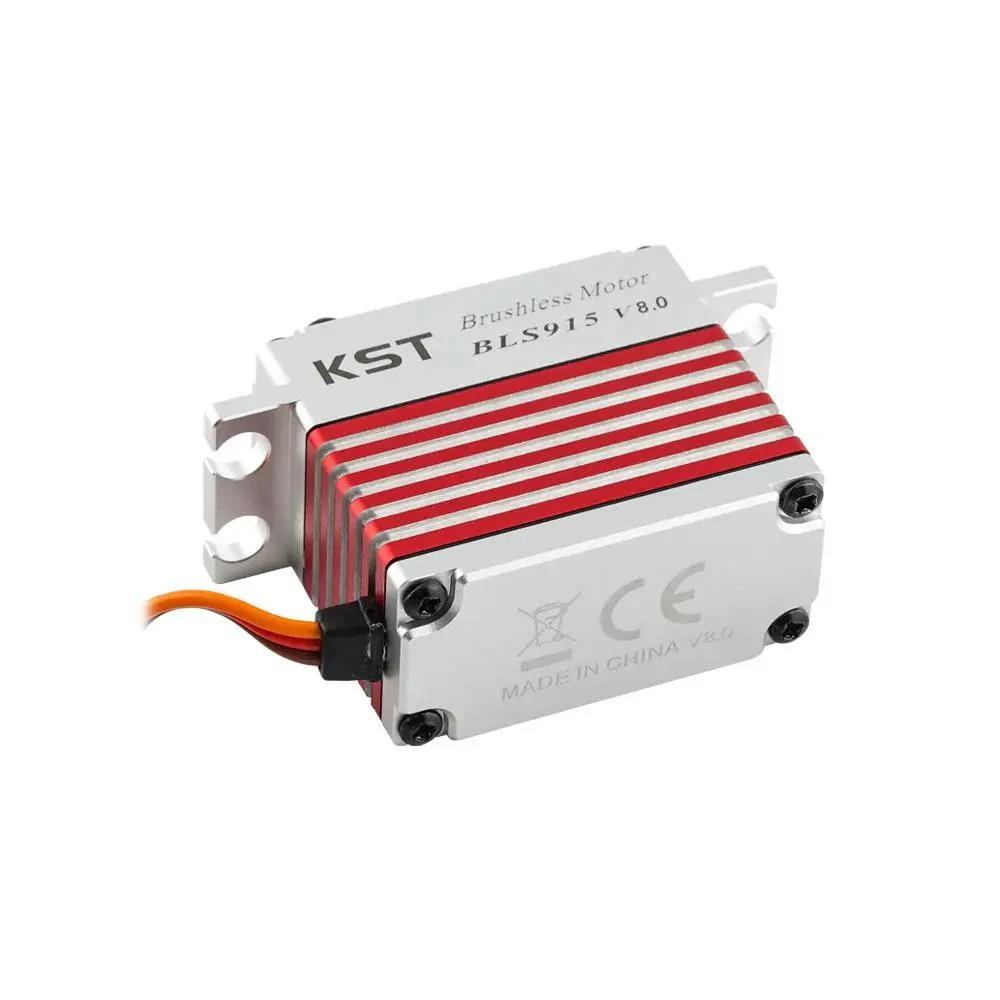

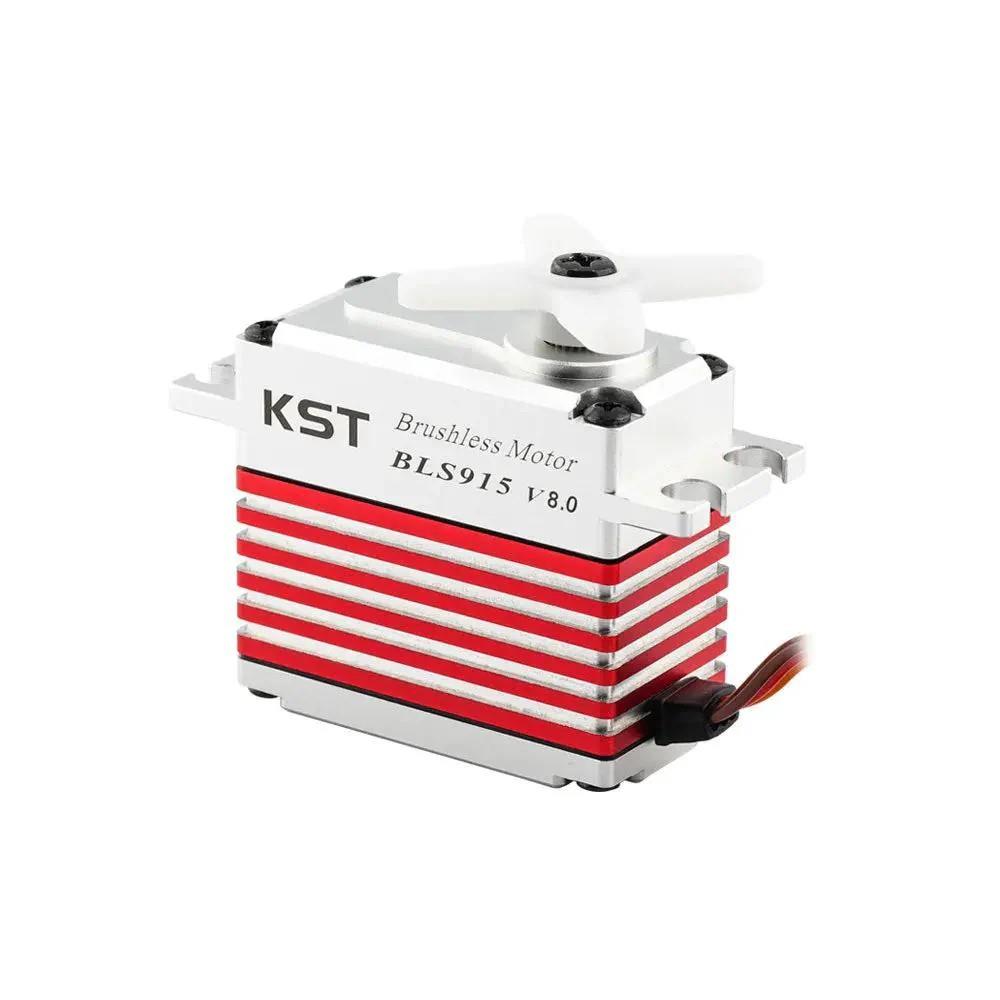

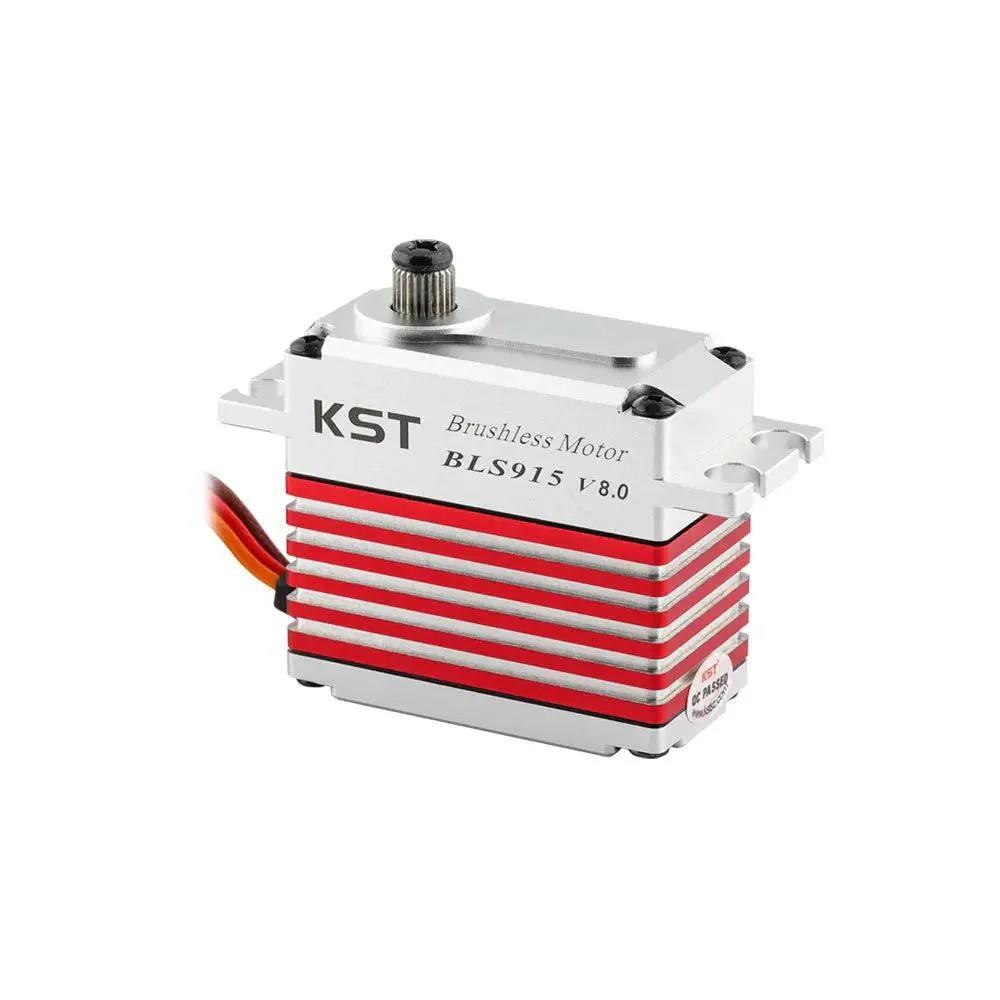

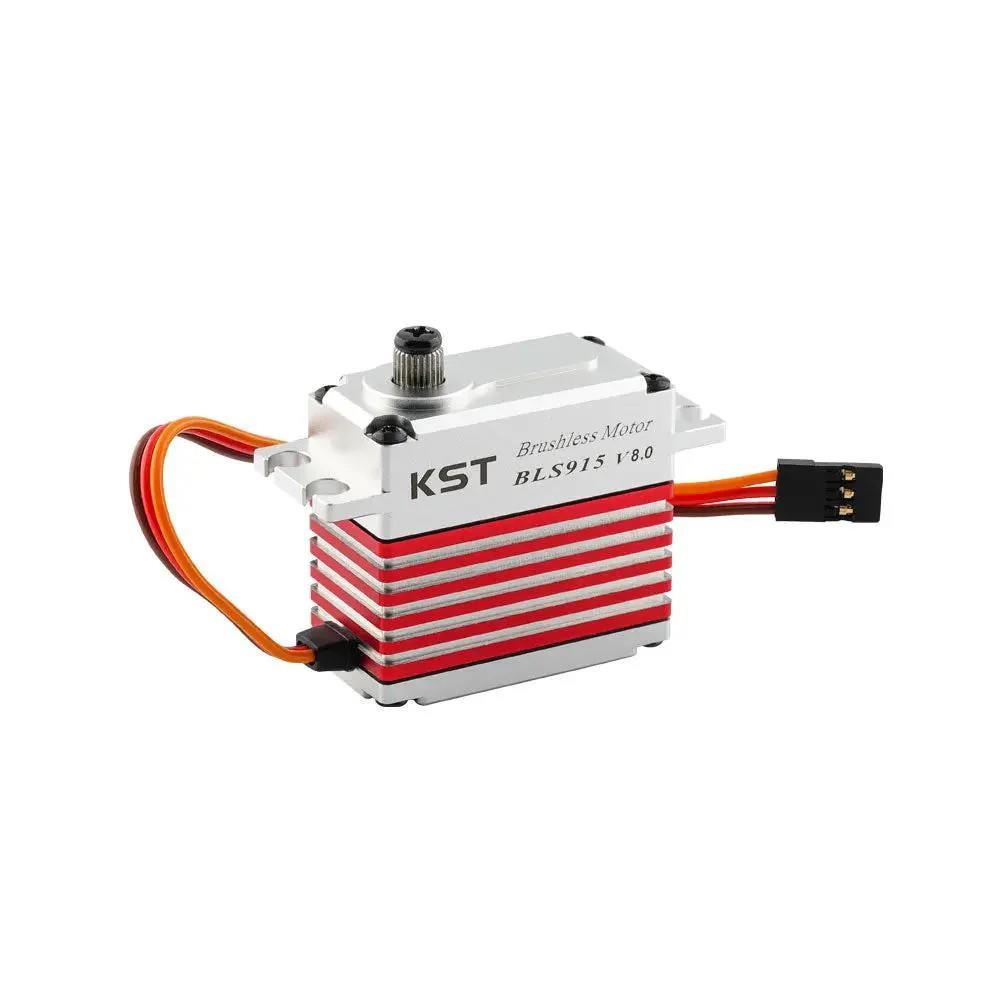

Item: BLS915 V8.0 Brushless Servo
Operation Voltage(rated): DC7.4V
Operation Voltage Range: DC6V-8.4V
Torque: 18Kgf.cm@6.0V, 22Kgf.cm@7.4V, 25Kgf.cm@8.4V
Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
Working Frequency: 1520us/333Hz (Default), 760us/560Hz (Programming Tool Required)
Default Travel Angle: ±50°=100°when1000us-2000us
Temperature Range -10℃……+65℃
Soft Start: Programable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

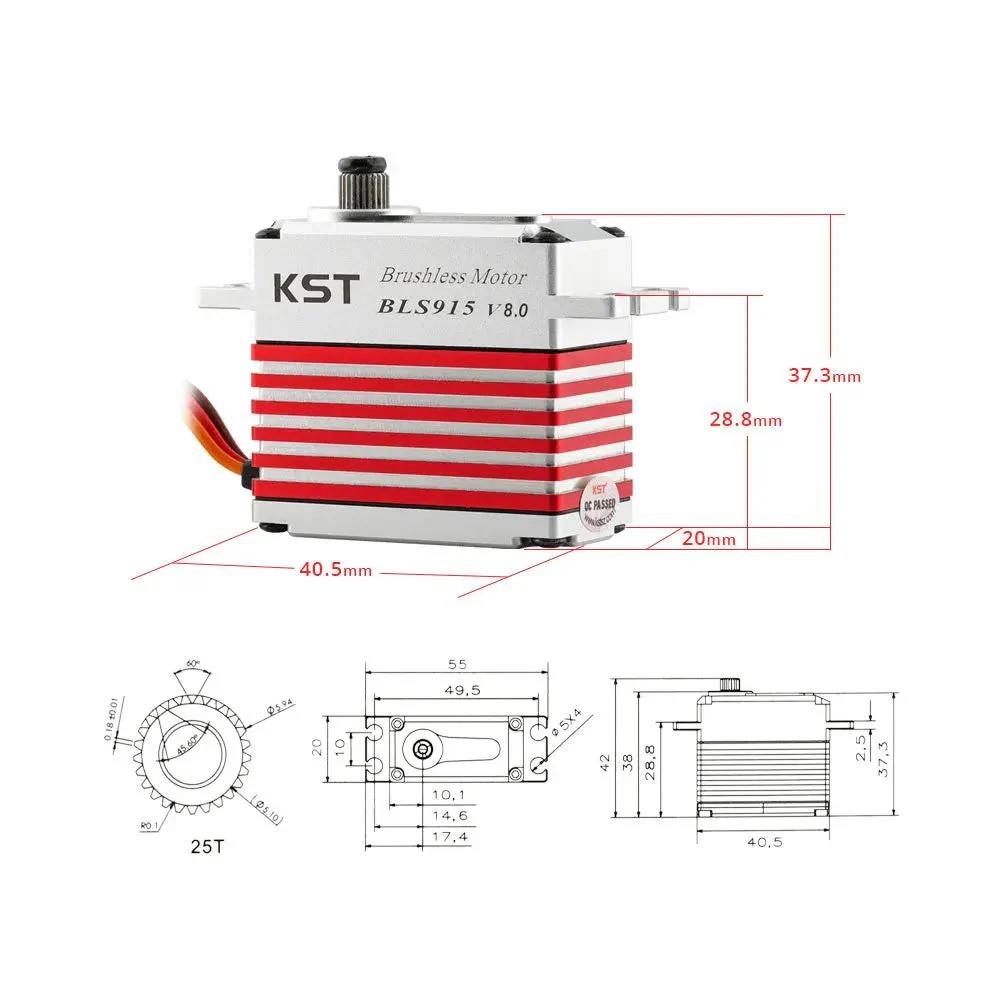

Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
