Features
Compact and Lightweight Design
Excellent Torque and Speed
Designed for High Performance RC Gliders
Excellent Heat Dissipation
Programmable
Ideal for RC Glider & Helicopters

Specifications
Item: DS215MG Micro Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 3.1Kgf.cm@6.0V, 3.7Kgf.cm@7.4V, 4.0Kgf.cm@8.4V
Speed: 0.060sec/60°@6.0V, 0.055sec/60°@7.4V, 0.050sec/60°@8.4V
Working Frequency: 1520μs/333Hz

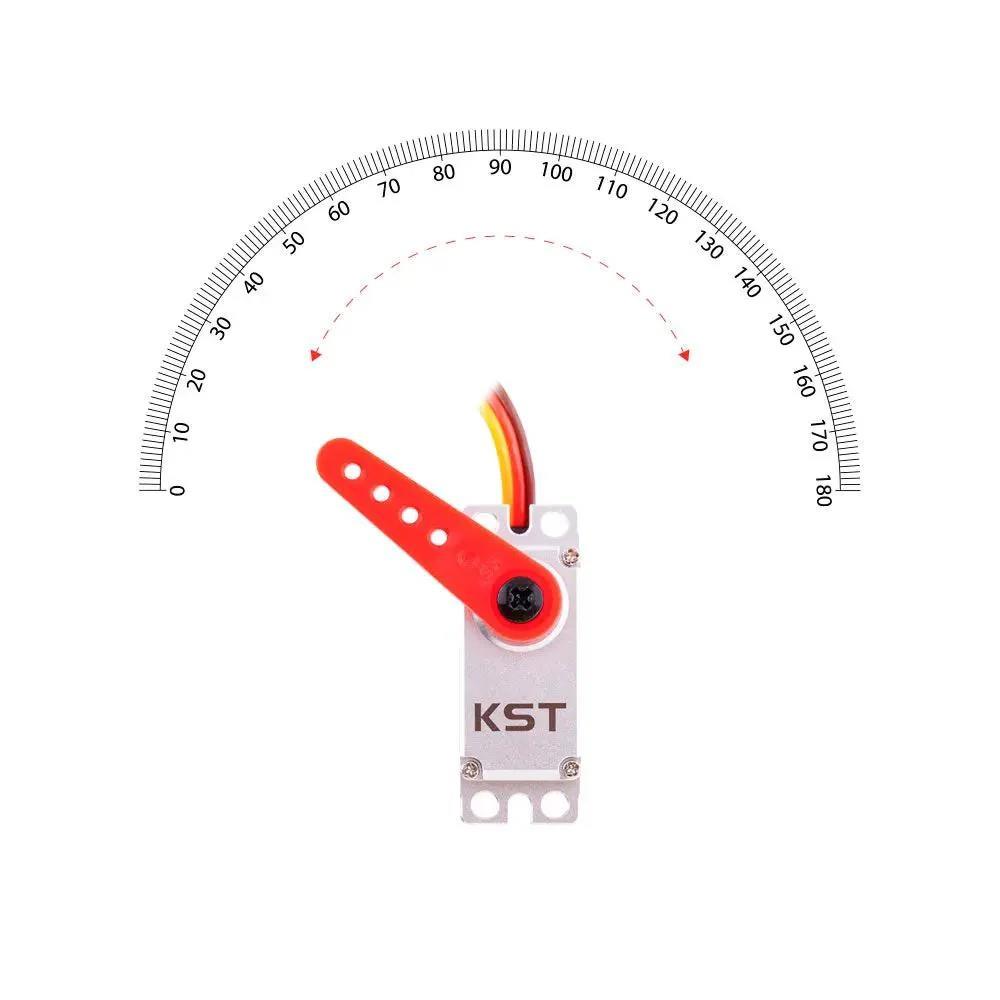

Default Travel Angle: ±70° = 140° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

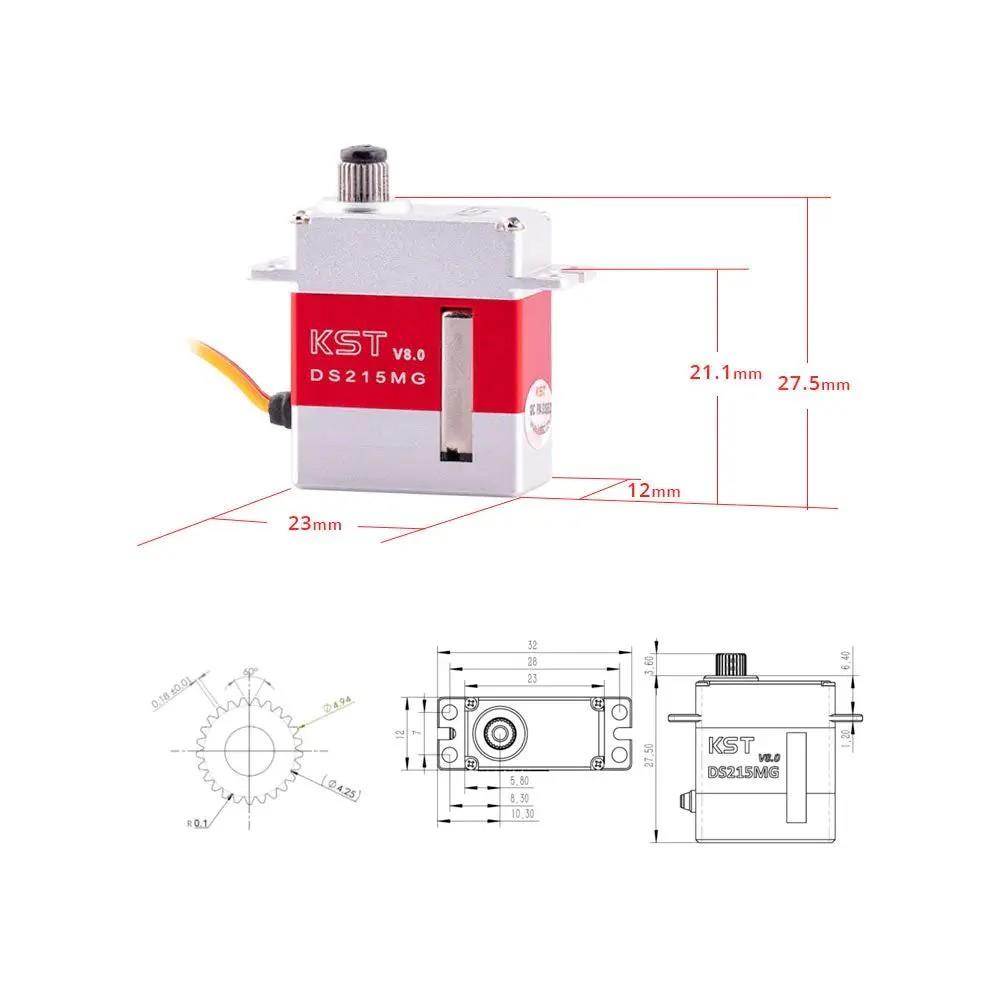

Case Dimensions: 23mm*12mm*27.5mm±0.2mm
Weight: 20g±10%
Accessories: DS215MG Metal Gear Set

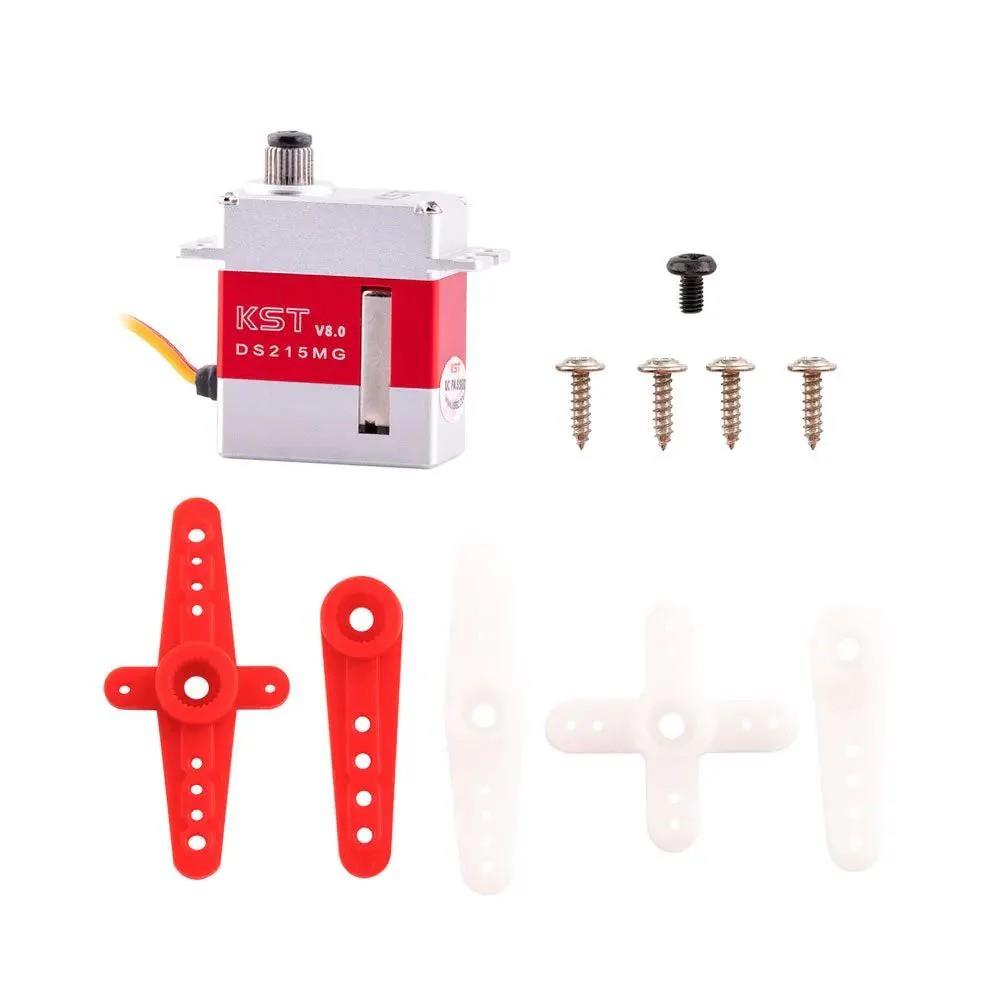

Package Including
1 * DS215MG V8.0 Servo
1 * Servo Horn Screw
4 * Mounting Screw
5* Plastic Servo Horn
