DS525MG 8.4V HV Digital Metal Gear Servo 7.5kg 0.04sec for Helicopters
Productno.: KST-DS525MG
Price before  EURPrice64,01  EUR


  • The Shop with Knowhow
  • 14-day return policy
  • Fast delivery
Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings

Specification
Item: DS525MG Metal Gear Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque:
7.5Kgf.cm@8.4V
6.5Kgf.cm@7.4V
5.5Kgf.cm@6.0V
Speed:
0.040sec/60°@8.4V
0.045sec/60°@7.4V
0.050sec/60°@6.0V
Working Frequency: 760μs/560Hz
Temperature Range: -10℃……+65℃
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer

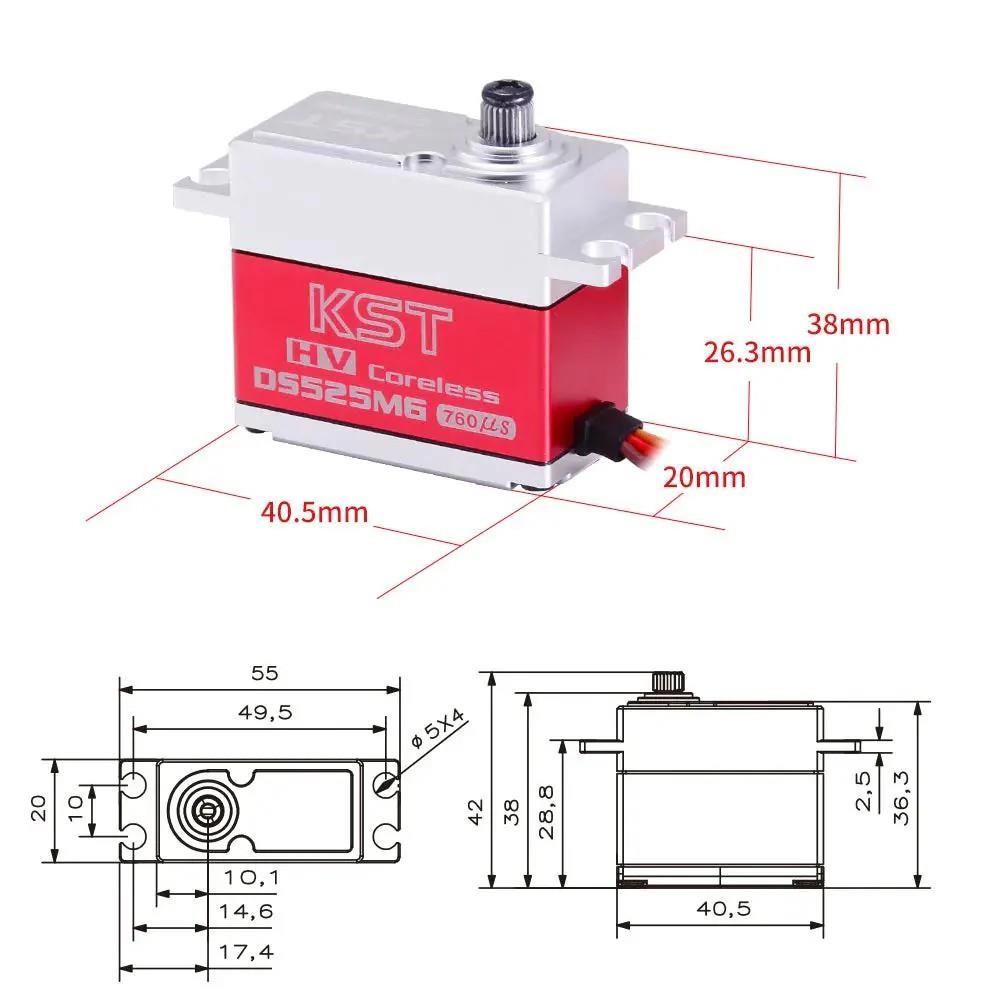

Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
Ball Bearing: 2 BB
