Specification

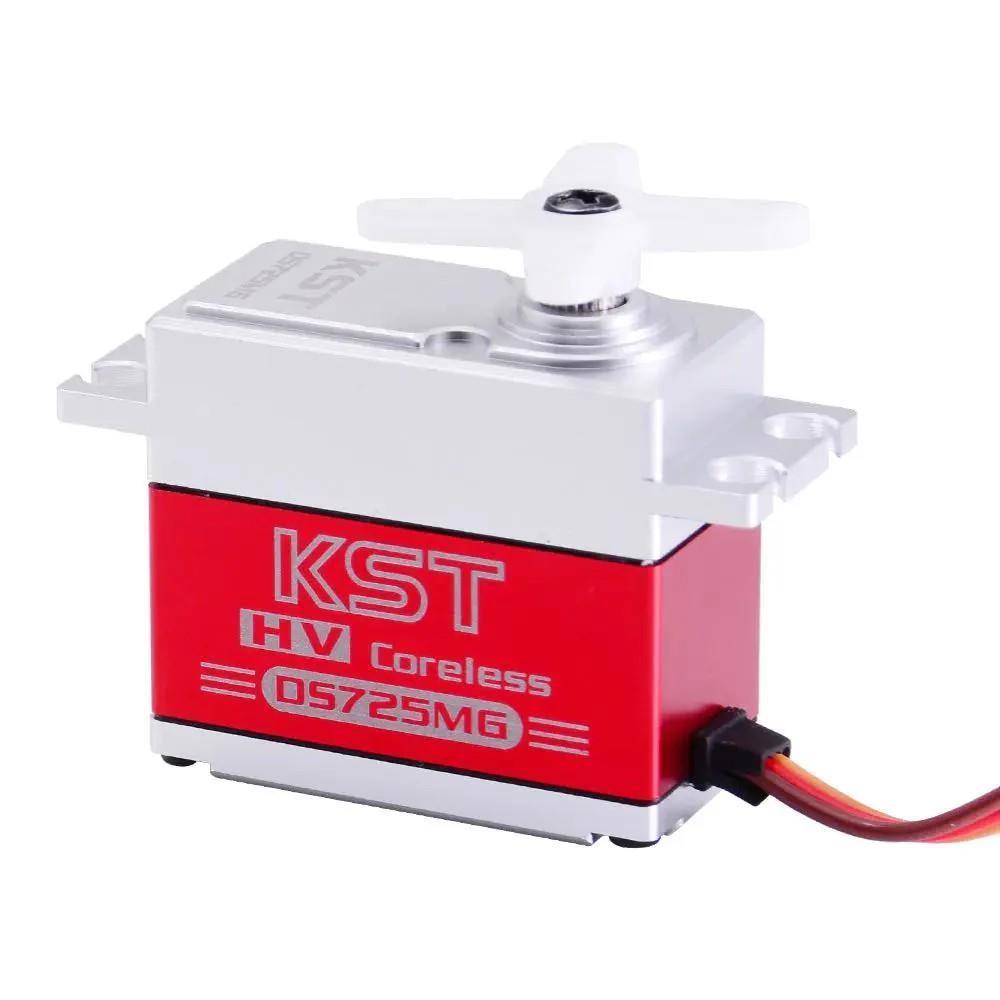

Item: DS725MG HV Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V

Stalling Torque:
13Kgf.cm@6.0V
16Kgf.cm@7.4V
18Kgf.cm@8.4V

No-load Speed:
0.09sec/60°@6.0V
0.08sec/60°@7.4V
0.07sec/60°@8.4V

Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50°=100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

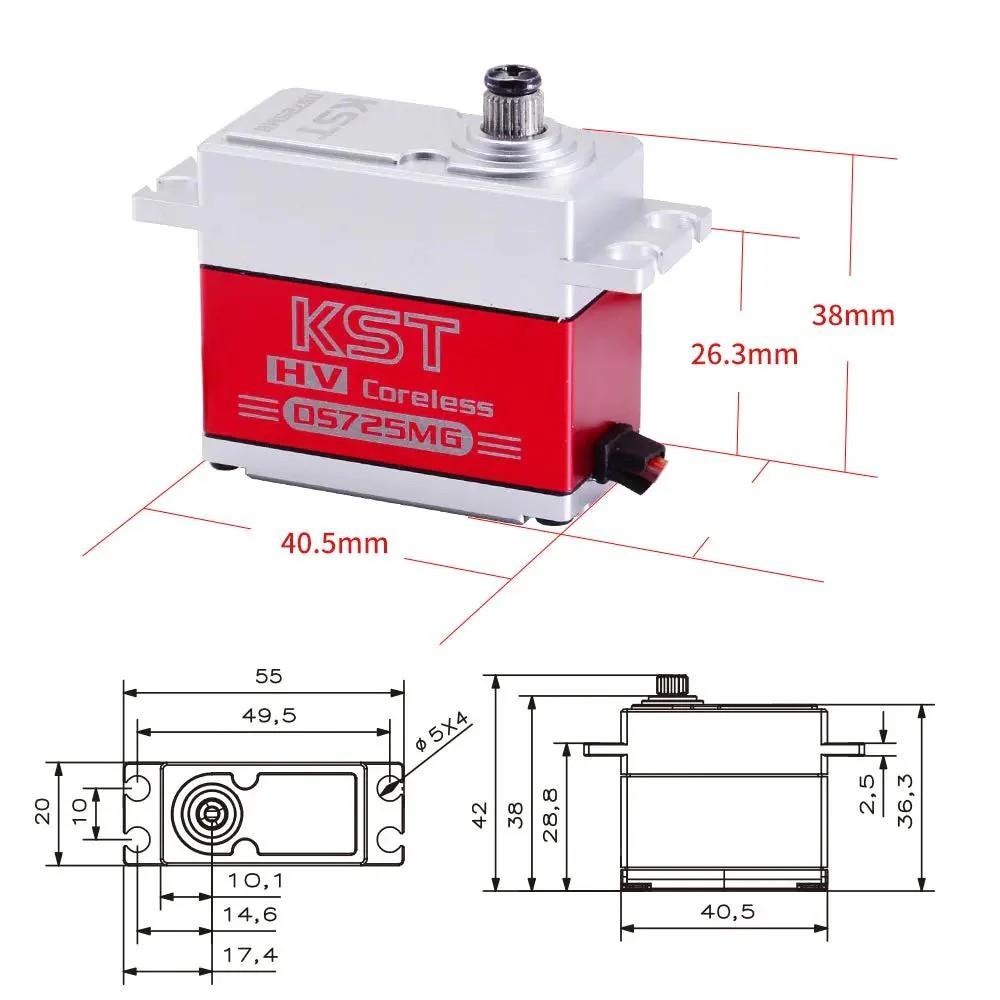

Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
