Instructions:
●The elegant cases are made of aluminum. Each cooling slot and its fin is carefully designed and arranged, and the case undergoes oxidation, coloring, and edge-highlighting.
●Features a double-sided hollow aluminum alloy casing with side openings, allowing air to flow quickly through the regulator and efficiently dissipating heat from the circuit board to the exterior.
●Powered by a 32-bit processor with advanced optimization algorithms, it delivers exceptional constant speed performance with steadier, more powerful RPMs and adjustable sensitivity. With the adjustable sensitivity of speed-governing, every pilot can find the most suitable settings for his helicopter.
●The 12V Switch BEC with built-in programmable switch mode has stronger output capacity. The output voltage is continuously adjustable from 5V to 12V, and the output current capacity is extremely strong, ensuring that the servo responds quickly and accurately, making every flight action precise!
●A high quality, and high voltage MOSFET with a great current endurance guarantees the ESC’s safety especially in a extremely high power demanding situation.
●Built-in sparkproof circuit effectively eliminates sparks produced at the “powering-on” moment and prolongs the connector’s lifespan.
●Support multifunction programmer setup.

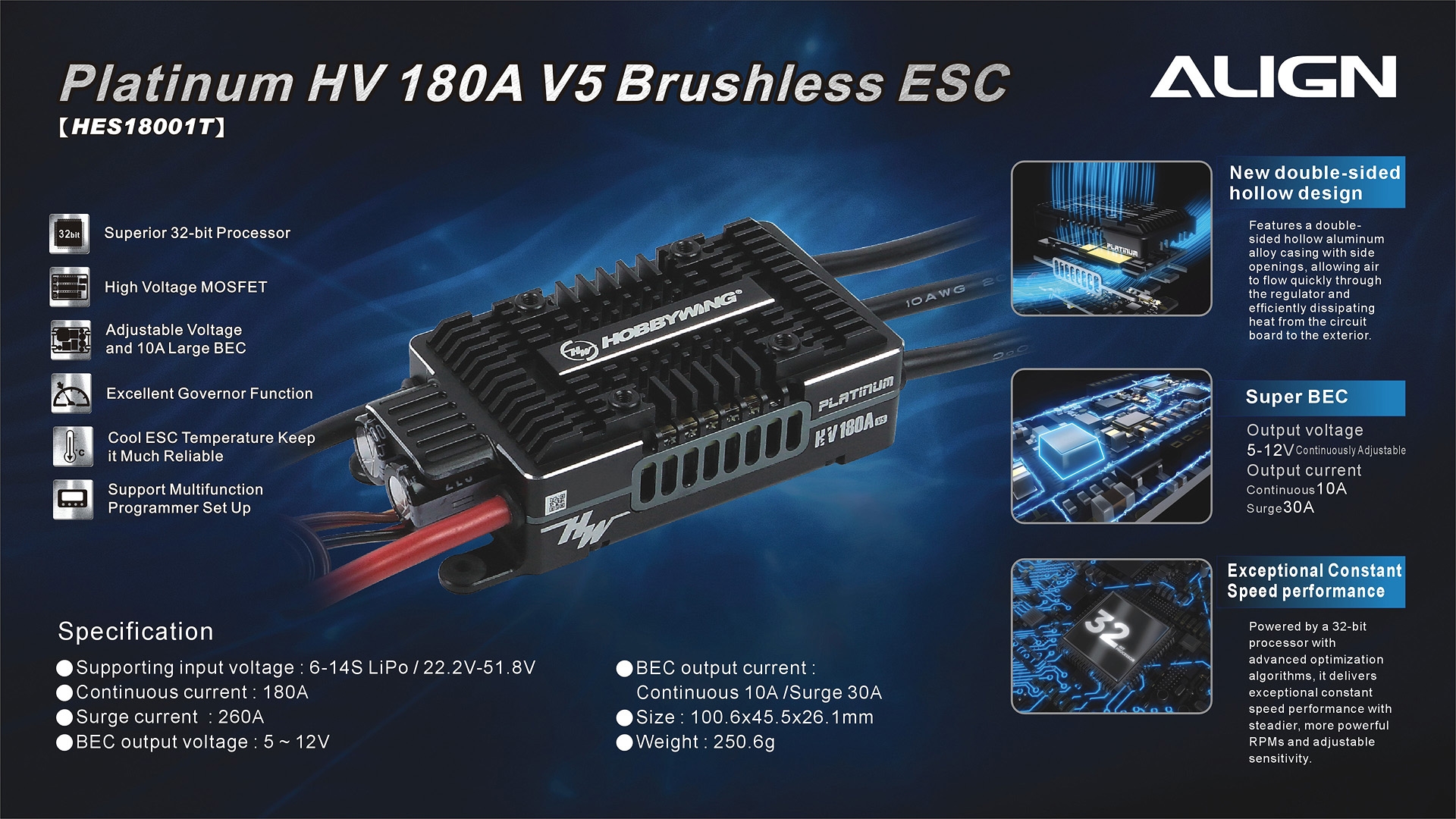

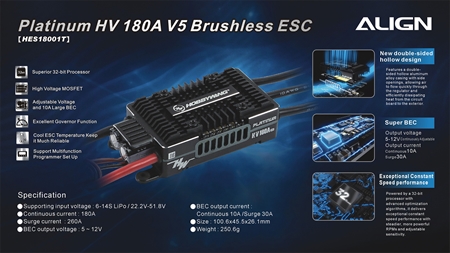

Specification:
●Supporting input voltage: 6~14S Lipo / 22.2V~51.8V
●Continuous current: 180A
●Surge current: 260A
●BEC output voltage: 5~12V
●BEC output current: Continuous 10A / Surge 30A
●Size: 100.6x45.5x26.1mm
●Weight: 250.6g
Accessories:

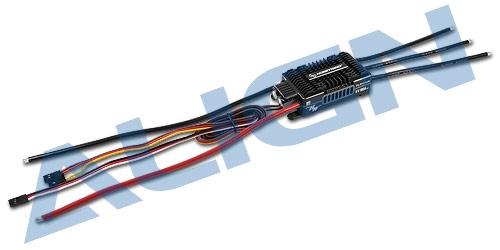

●180A Brushless ESC x 1

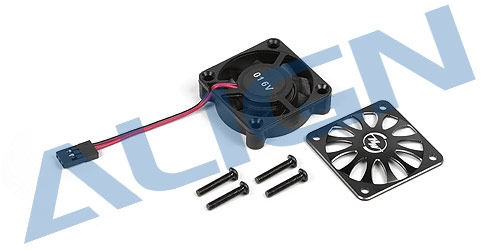

●180A Brushless ESC Fan x 1
●Fan Cover x 1

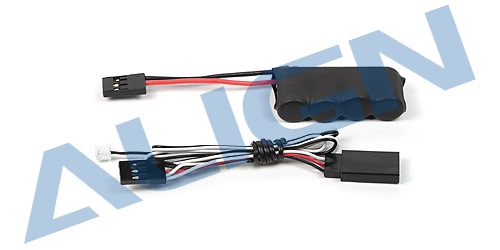

●Capacitance x 1
●Signal Line x 1
●Half Socket Button Head Screw x 4(M3x16mm)
