Feature
DC12V High Voltage
Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
Ultra High Torque & Excellent Speed
Programmable
Dual Ball Bearings
Brushless DC Motor
Ideal for 700-800 Class RC Helis & Large Scale RC Planes

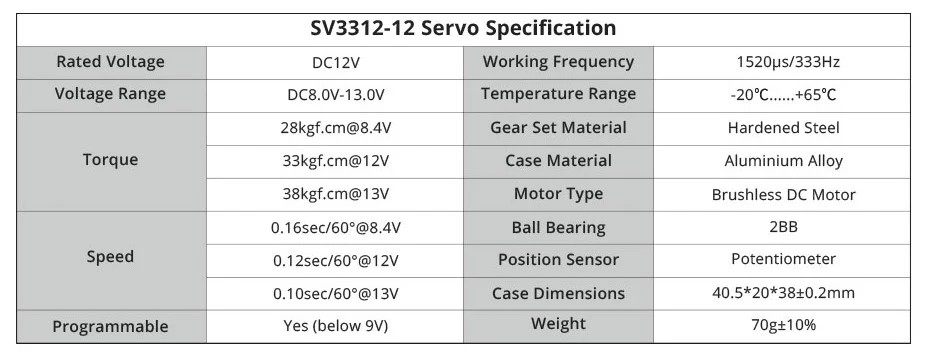

Specification
Item: SV3312-12 Servo
Rated Voltage: DC12V
Voltage Range: DC8.0V-13.0V
Torque: 28Kgf.cm@8.4V / 33Kgf.cm@12V / 38Kgf.cm@13V
Speed: 0.16sec/60°@8.4V / 0.12sec/60°@12V / 0.10sec/60°@13V
Working Frequency: 1520μs/333Hz

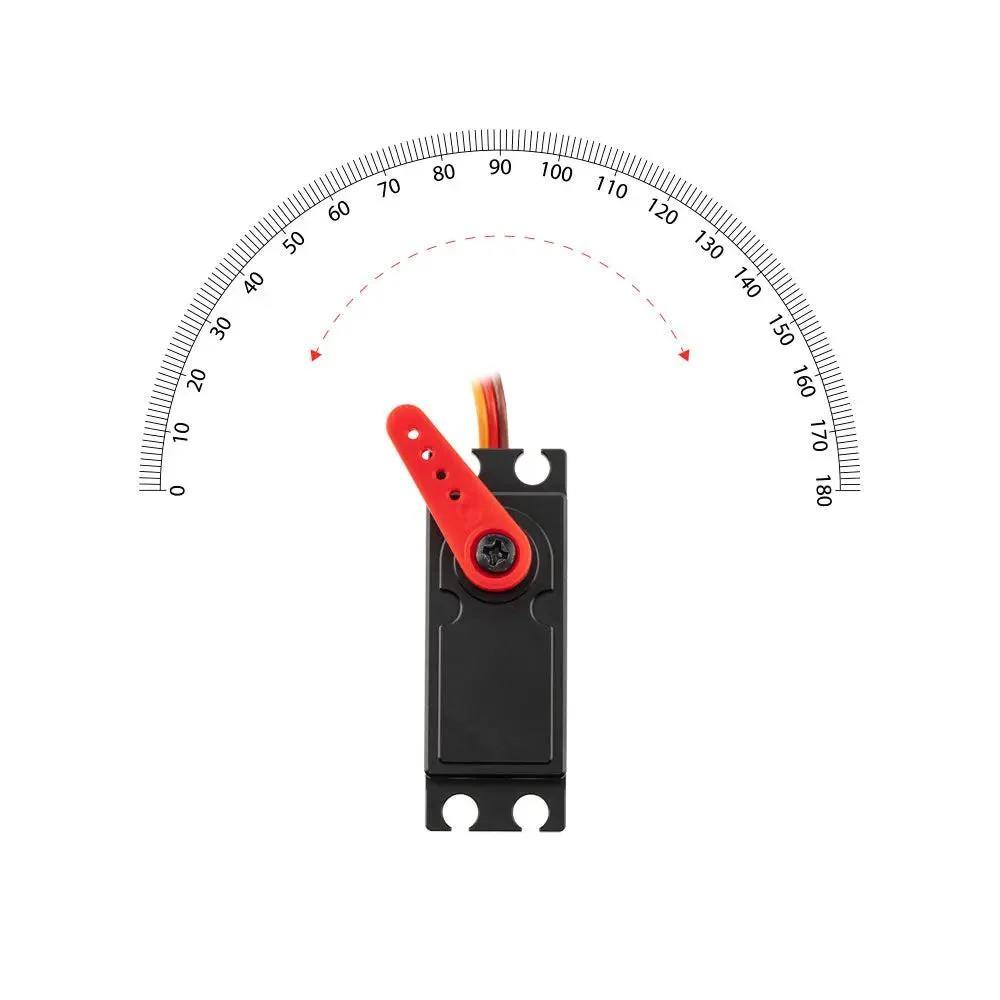

Default Travel Angle: ±60° =120° Total
Temperature Range: -20℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2BB

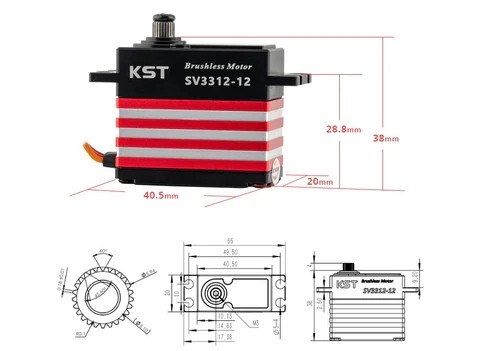

Case Dimensions: 40.5mm*20mm*38mm ±0.2mm
Weight: 70g±10%
