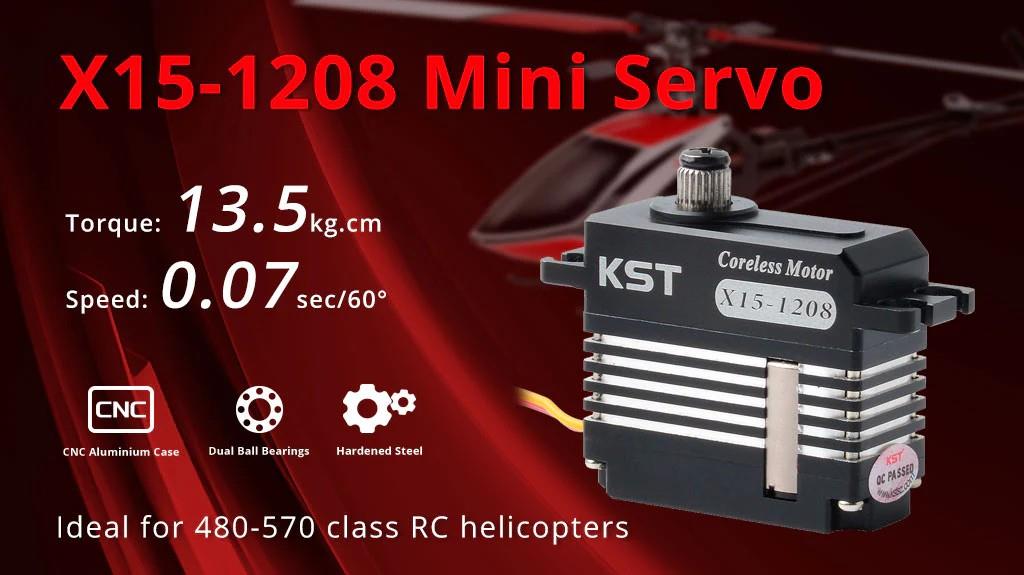

KST X15-1208 Mini Size Digital Servo is a great choice for helicopters ranging from 430mm-570mm rotor blade size requiring mini servos such as the Align T-Rex 500, Mikado Logo 480, MSH Protos 500, and SAB Goblin 570. Additionally these servos can be used in other RC applications where the physical dimensions, and torque/speed ratings suit the need of the RC application.

Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings

Specification
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V

Torque:
9.8Kgf.cm@6.0V
12.0Kgf.cm@7.4V
13.5Kgf.cm@8.4V

Speed:
0.10sec/60°@6.0V
0.08sec/60°@7.4V
0.07sec/60°@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° = 100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
Weight: 40g±10%
