Features
Hardened Steel Gears
Extreme Torque and Excellent Speed
CNC Aluminium Case
Two Ball Bearings
Support High Voltage 8.4V
Programmable Via Programming Card

Specification

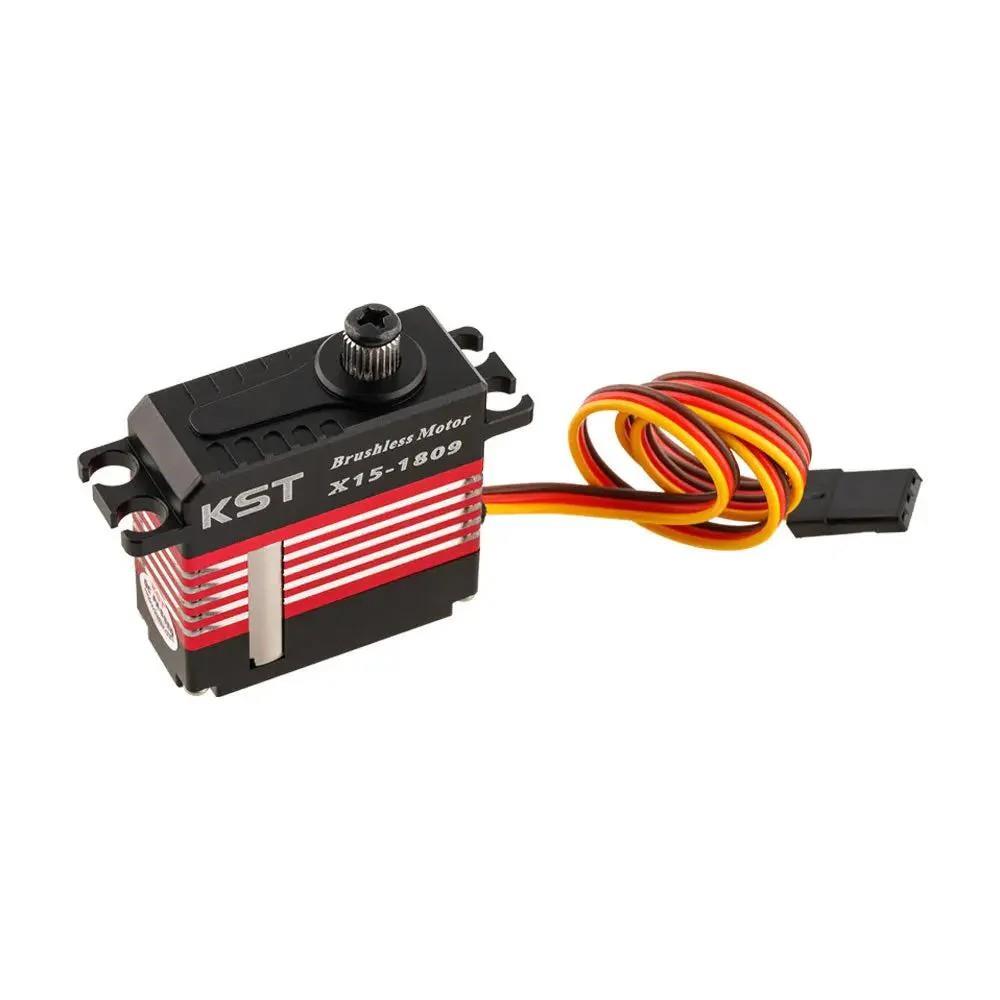

Item: X15-1809 Digital Servo
Rated Voltage: DC7.4V
Voltage Range: DC6.0V-8.4V
Torque: 18Kgf.cm@6.0V, 22Kgf.cm@7.4V, 24Kgf.cm@8.4V
Speed: 0.09sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
Working Frequency: 1520μs/333Hz (Default), 760μs/560Hz (Programming Tool Required)
Default Travel Angle: ±50° = 100° Total
Temperature Range: -10℃……+65℃
Soft Start: Programable
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Ball Bearing: 2 Ball Bearings

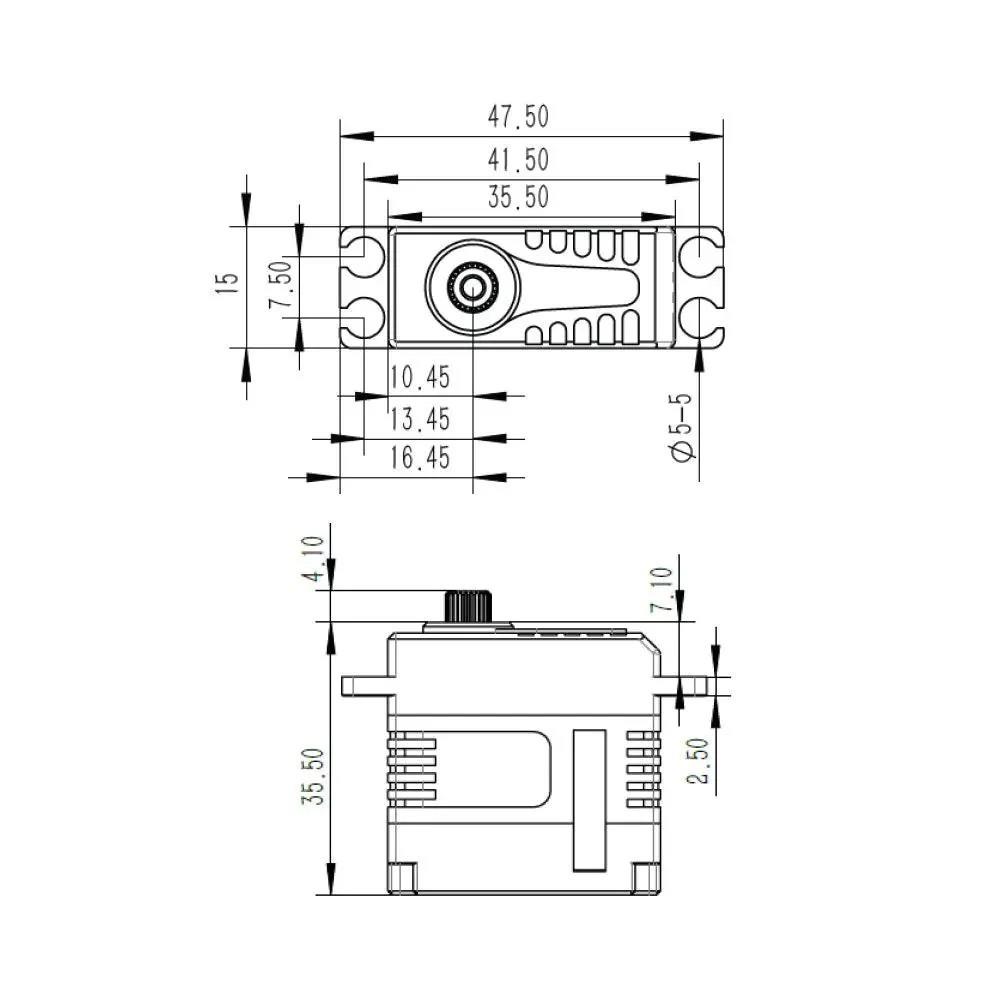

Case Dimensions: 35.5mm*15mm*35.5mm±0.2mm
Weight: 45g±10%
